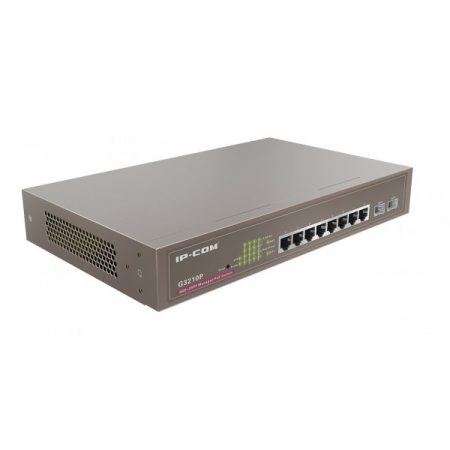

G3210P 8-Port Gigabit+2*SFP Managed PoE Switch
คุณสมบัติ
- G3210P, IP-COM 8G+2SFP Managed PoE Switch is right for remote Gigabit wireless cabling and HD monitoring network. Besides with access of high performance, it provides 8 10/100/1000 Base-T Ethernet ports and 2 extra independent 1000Base-X Gigabit SFP ports. Ports 1~8 support IEEE 802.3af PoE (15.4W) or 802.3at PoE+ (30W) standard; up to 40W power output per PoE port; and can supply electricity to high-power PDs such as dual band/11AC devices; supply electricity and transmit data at the same time to AP, IP Camera or IP Phone via Cat.5e twisted-pair cables.
รับประกัน 2 ปี
-
รายละเอียดสินค้า G3210P 8-Port Gigabit+2*SFP Managed PoE Switch
G3210P, IP-COM 8G+2SFP Managed PoE Switch is right for remote Gigabit wireless cabling and HD monitoring network. Besides with access of high performance, it provides 8 10/100/1000 Base-T Ethernet ports and 2 extra independent 1000Base-X Gigabit SFP ports. Ports 1~8 support IEEE 802.3af PoE (15.4W) or 802.3at PoE+ (30W) standard; up to 40W power output per PoE port; and can supply electricity to high-power PDs such as dual band/11AC devices; supply electricity and transmit data at the same time to AP, IP Camera or IP Phone via Cat.5e twisted-pair cables. In addition to these, it provides stronger safety protection system, improved QoS policy, multiple VLAN features and higher availability of maintenance. To sum up, IP-COM 8G+2SFP Managed PoE Switch is an ideal and safe switch for easy use.
PoE Performance
IP-COM 8G+2SFP Managed PoE Switch has 8 Gigabit Ethernet ports and 2 SFP independent optical ports; Ports 1~8 support PoE (AT/AF) and up to 40W power output per PoE port.Safe Network Management
IP-COM 8G+2SFP Managed PoE Switch supports VLAN, IP+MAC Binding, QoS, DHCP Snooping, Telnet etc.
Power Supply Distance Extension
IP-COM 8G+2SFP Managed PoE Switch employs Cat.5e twisted-pair cables, extending the power supply and data transmission distance of up to 150m.
-
ข้อมูลเทคนิคของ G3210P 8-Port Gigabit+2*SFP Managed PoE Switch
รายการสินค้า: G3210P 8-Port Gigabit+2*SFP Managed PoE Switchรายการ รายละเอียด Model No. G3210P Copper Ports 8 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports SFP/mini-GBIC Slots 2 1000Base-SX/LX/BX SFP interfaces (Port-9 and Port-10) Compatible with 100Base-FX SFP Switch Architecture Store-and-Forward Throughout 14.88Mpps Address Table 8K entries, automatic source address learning and aging Share Data Buffer 1.49Mpps Flow Control IEEE 802.3x Pause Frame for Full-Duplex Back pressure for Half-Duplex Jumbo Frame 9Kbytes Reset Button < 5 seconds: System reboot > 5 seconds: Factory Default Dimension 294*178.8*44 mm(W x D x H), 1U high Weight 1.8kg LED Power,PoE-Max Link/Act per Gigabit port PoE In-Use for Port-1~ 8 Power Supply 130W PoE Standard IEEE 802.3af / at PoE Power Supply Type End-Span PoE Power Output Per Port 51V DC Max. 40 Watts Power Pin Assignment 1/2(+), 3/6(-) PoE Power Budget 115W PoE Ability Number of PD @ 7 Watts 8 Number of PD @ 15.4 Watts 8 Number of PD @ 30.8 Watts 4 Basic Management Interfaces Telnet, Web Browser, SNMPv1, v2c Port configuration Port disable / enable Auto-Negotiation 10/100/1000Mbps full and half duplex mode selection Flow Control disable / enable Bandwidth control on each port Power saving mode control Port Status Display each port’s speed duplex mode, link status, Flow control status,Auto negotiation status, trunk status Port Mirroring TX / RX / Both Many to 1 monitor VLAN 802.1Q Tagged Based VLAN, up to 64 VLAN groups Q-in-Q tunneling Private VLAN Edge (PVE) MAC-Based VLAN Protocol-Based VLAN Voice VLAN Up to 10 VLAN groups, out of 160 VLAN IDs Link Aggregation IEEE 802.3ad LACP / Static Trunk Supports 5 groups of 10-Port trunk support QoS Traffic classification based, Strict priority and WRR 8-Level priority for switching Port Number 802.1p priority 802.1Q VLAN tag DSCP/TOS field in IP Packet IGMP Snooping IGMP (v1/v2) Snooping, up to 200 multicast Groups IGMP Querier mode support Regulation Compliance FCC,CE,RoHS Operating Temperature 0℃~40℃ (32℉~104℉); Storage Temperature -40℃~70℃ (-40℉~158℉) Operating Humidity 10%~90% non-condensing Storage Humidity 5%~90% non-condensing） -
การติดตั้ง
- ราคาที่แสดงบนเว็บไซต์ เป็นราคาพร้อมติดตั้ง
- บริการติดตั้งในพื้นที่จังหวัด กรุงเทพมหานคร
- สอนการใช้งานเบื้องต้น การตั้งค่า การดูแลรักษา
- มีการรับประกันการติดตั้ง
